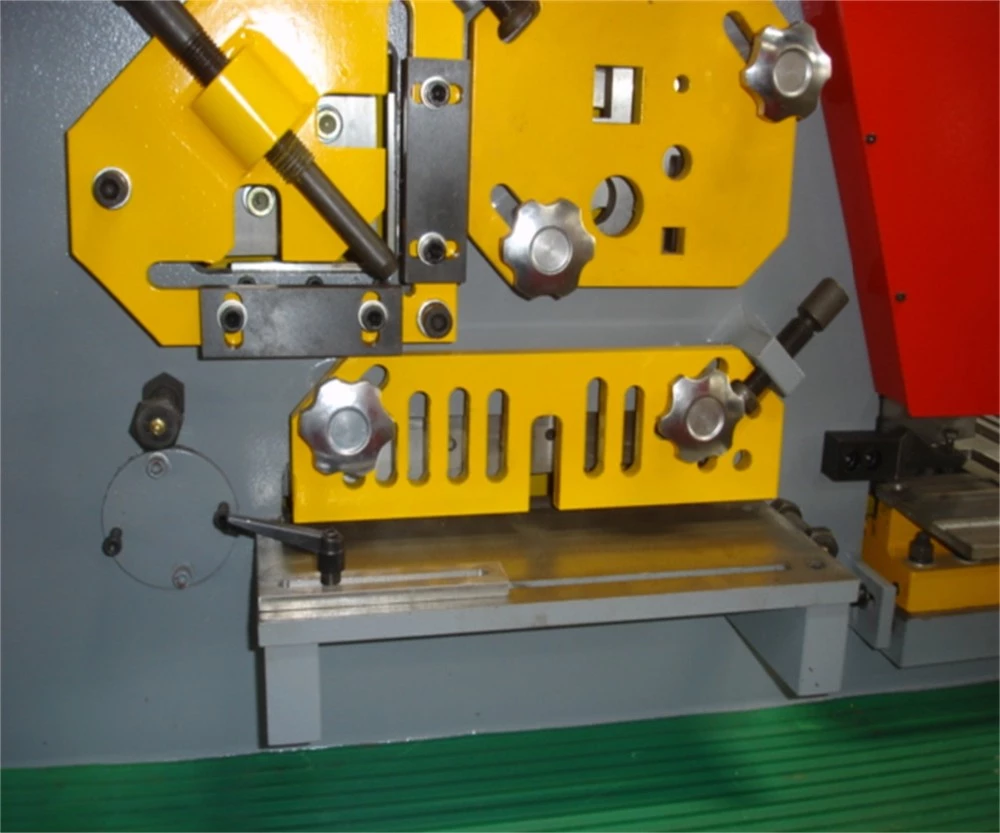

Q35Y Hydraulic Press Brake Iron Worker Combined Punching And Shearing Machine
Q35Y series of multi-functional hydraulic combined punching and shearing function for sheet steel, square steel, round steel, channel steel, Angle steel, I-steel and other shaped steel cutting, punching, is a large number of various shaped steel material selection machine tool.
It can bend the sheet material below 500mm in length.
Every part of the machine meets higher quality requirements in terms of safety, function, maintenance and performance.
Multifunctional combined hydraulic punching and shearing machine is suitable for the reinforcing steel processing field, tunnel, bridge and other projects of expressway and high-speed railway, and is suitable for the processing of steel plate, Angle iron, channel steel, I-steel, round steel and square steel.
This machine is a multi-purpose, high efficiency, saving labor, saving equipment input, is a necessary tool for steel processing.
Q35Y Hydraulic combined punching and shearing machine Technical parameters:
型钢种类 | 圆钢 | 方钢 | 等边角钢 | Ｔ型钢 | 工形钢 | 槽钢 | ||
断 面 |
|
| 90°剪切 | 45°剪切 | 90°剪切 | 45°剪切 |
|
|
|
| |||||||
Q35Y-16 | 45 | 40*40 | 125*125*12 | 50*50*5 | 125*125*12 | 60*60*8 | 126*74*5 | 126*53*5.5 |
Q35Y-20 | 50 | 50*50 | 140*140*12 | 50*50*5 | 140*140*12 | 70*70*10 | 160*86*6 | 160*60*6.5 |
Q35Y-25 | 60 | 50*50 | 160*160*14 | 60*60*6 | 160*160*14 | 80*80*10 | 200*102*9 | 210*75*9 |
Q35Y-30 | 65 | 55*55 | 180*180*16 | 60*60*6 | 180*180*16 | 80*80*10 | 280*124*10.5 | 280*86*11.5 |
Q35Y-35 | 65 | 55*55 | 180*180*16 | 60*60*6 | 180*180*16 | 80*80*10 | 280*124*10.5 | 280*86*11.5 |
Q35Y-40 | 70 | 60*60 | 200*200*18 | 100*100*10 | 160*160*16 | 80*80*10 | 300*126*11 | 300*89*12 |
Q35Y-50 | 80 | 65*65 | 200*200*20 | 120*120*10 | 180*180*16 | 80*80*10 | 320*130*10 | 320*92*12 |
Q35Y-60 | 90 | 75*75 | 250*250*20 | 120*120*12 | 200*200*18 | 100*100*12 | 400*400*12 | 400*100*12 |
The form is for reference only, please consult the staff for more information
T-beam, I-beam and channel steels require special orders.
